G4-93 Heavy Duty Kobelco Unit Pump Testing Jig | Professional Diesel Pump Test Stand Adapter

Click the WhatsApp button to chat, or leave a message, and we will contact you within 12 hours.

Details

Product Description

The G4-93 is a specialized industrial grade Kobelco unit pump diagnostic tool designed specifically for heavy machinery maintenance. This Kobelco EUP service adapter for test benches ensures secure mounting and accurate simulation of engine cam action during the calibration process.

When repairing Kobelco excavators, using this precise Unit Pump Testing Fixture prevents measurement errors and component damage. For the most accurate calibration results, we recommend mounting this fixture onto a high-performance common rail test bench to monitor fuel delivery and response time. Its heavy-duty yellow cast-iron housing provides the necessary stability for high-torque testing operations, featuring a manual control lever for fine tension adjustments.

Scene graph

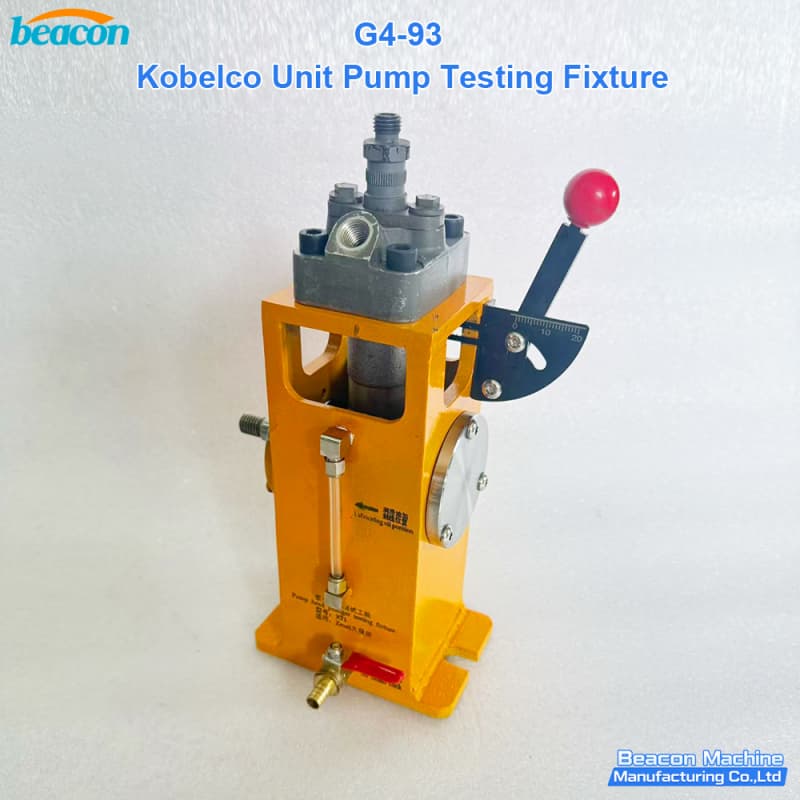

G4-93 Kobelco unit pump testing fixture side view with manual control lever and oil level sight glass.

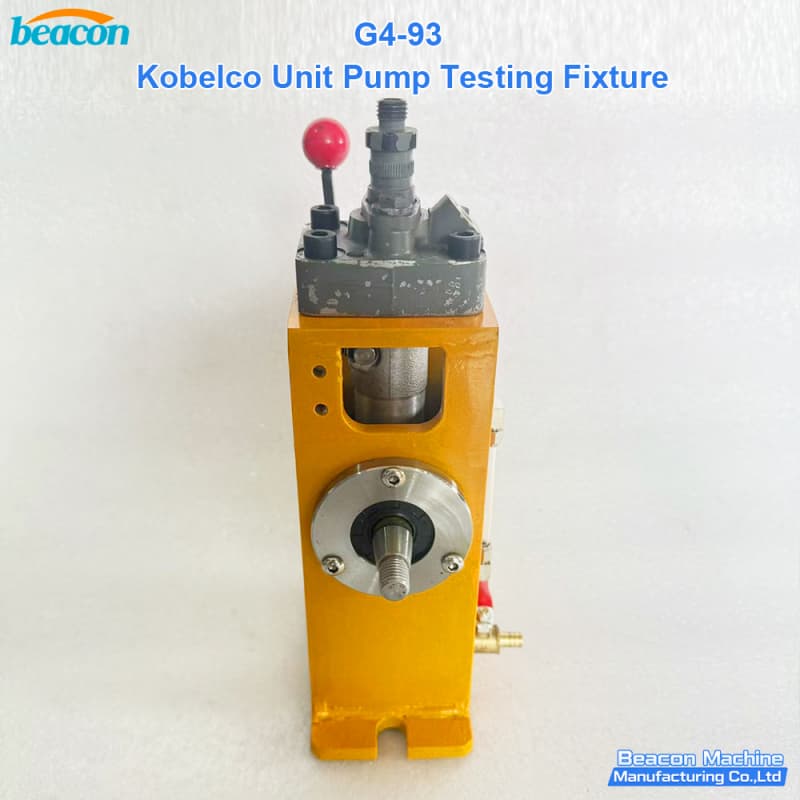

Front view of G4-93 Kobelco EUP diagnostic tool showing high-pressure fuel outlet and drive shaft.

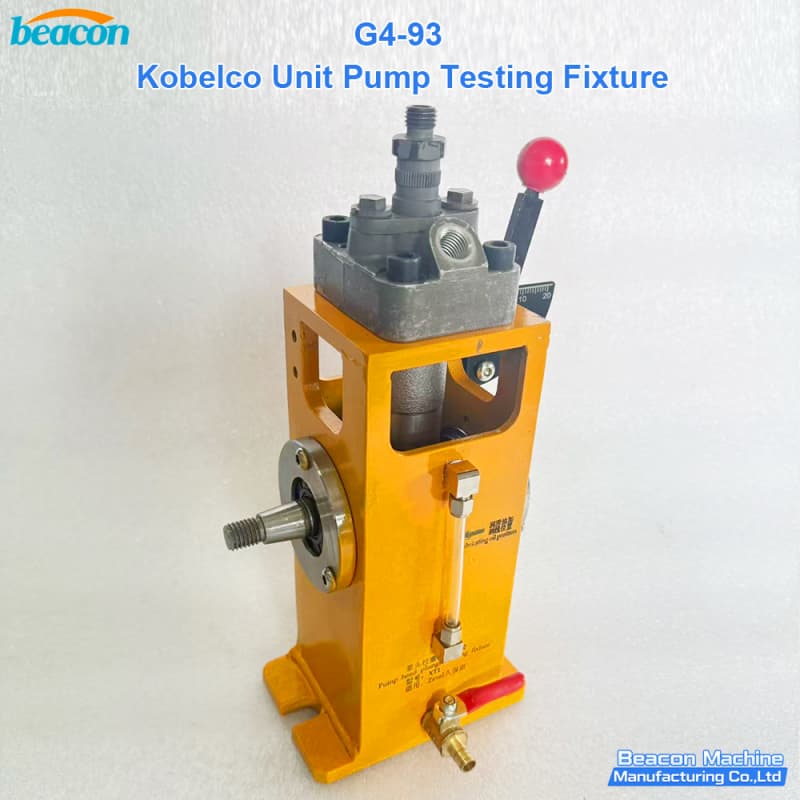

Industrial Kobelco unit pump mounting jig designed for high-torque test stand applications.

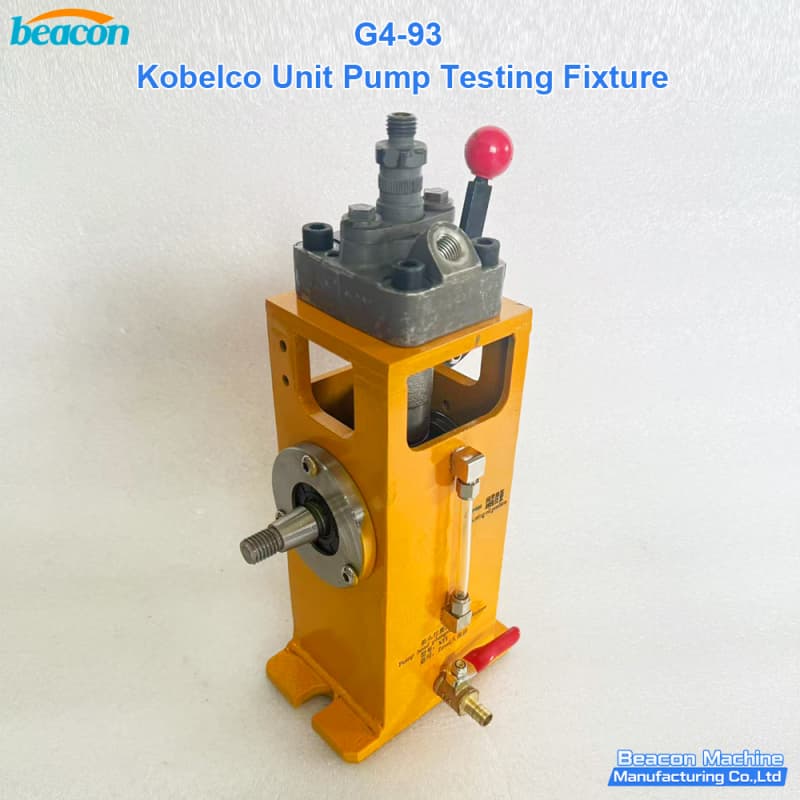

High precision diesel pump service adapter for Kobelco excavator engine fuel system calibration.

parameter

Features	Specifications
Model Number	G4-93
Tool Category	Unit Pump (EUP) Testing Fixture
Brand Compatibility	Kobelco Excavators / Heavy Machinery
Housing Material	Industrial Forged Cast Steel
Exterior Finish	Anti-corrosion Yellow Powder Coating
Control Mechanism	Adjustable Manual Tension Lever with Scale
Lubrication Monitor	Integrated External Oil Level Sight Glass
Mounting Interface	Universal Test Bench Flange Connection
Alignment Precision	Micrometer-level Concentricity Alignment
Application	Simulation of Camshaft Lift for Fuel Delivery Testing
Net Weight	Approximately 14.5 kg
